Tree Shape with Radius End F

Tungsten carbide burrs Tree Shape with Radius End F for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .

EMAIL

Tungsten carbide burrs Tree Shape with Radius End F for coarse stock removal on the key materials used in industrial manufacturing .

They provide a good stock removal reate and not specific to a particular material .

Advantages:

Reduced wear on the tool drive due to

impact-free work without chatter marks,

thanks to the high concentricity.

Materials that can be worked:

Steel, cast steel

Stainless steel (INOX)

Non-ferrous metals

Cast iron

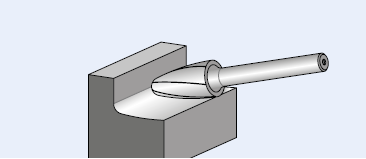

Applications:

Milling out

Levelling

Deburring

Cutting out holes

Surface work

Work on weld seams

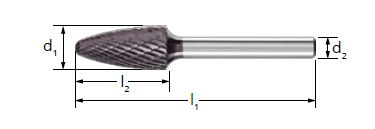

Order NOCut diameterCut lengthShank diameterTotal length
F0313M03     3 13 38//50
F0413M03     4 13 40
F0513M03     5 13 40
F0613M03     6 13 48
F0618M06     6 18 50
F0820M06     8 20 58
F1020M06     10 20 58
F1225M06     12 25 60
F1425M06     14 25 65
F1625M06     16 25 65
F1925M06     19 25 65
F1938M06     19 38 65
