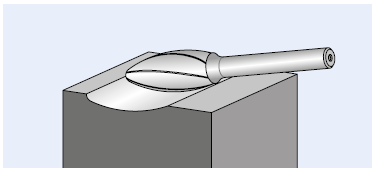

Tungsten Carbide Burrs, Flame Shape H for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Tungsten Carbide Burrs, Flame Shape H for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Advantages:
Reduced wear on the tool drive due to
impact-free work without chatter marks,
thanks to the high concentricity.
Materials that can be worked:
Steel, cast steel
Stainless steel (INOX)
Non-ferrous metals
Cast iron

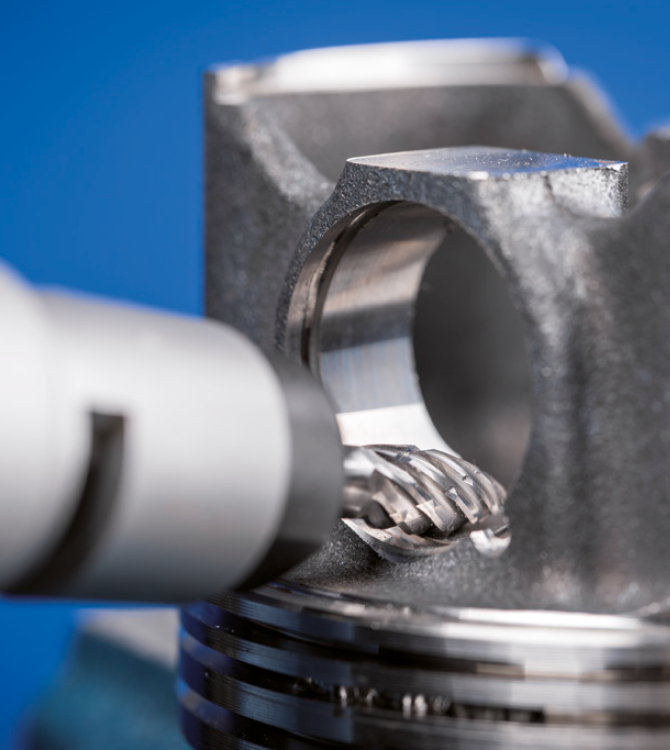

Applications:
Milling out
Levelling
Deburring
Cutting out holes
Surface work
Work on weld seams

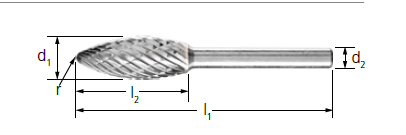

| Order NO | Cut diameter | Cut length | Shank diameter | Total length |
| H0307M03 | 3 | 7 | 3 | 38//50 |
| H0413M03 | 4 | 13 | 3 | 40 |
| H0513M03 | 5 | 13 | 3 | 40 |
| H0613M03 | 6 | 13 | 3 | 48 |
| H0618M06 | 6 | 18 | 6 | 65 |
| H0820M06 | 8 | 20 | 6 | 65 |
| H1025M06 | 10 | 25 | 6 | 65 |
| H1232M06 | 12 | 32 | 6 | 65 |
| H1636M06 | 16 | 36 | 6 | 65 |
| H1941M06 | 19 | 41 | 6 | 65 |
