Tungsten carbide burrs Oval Shape E for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Tungsten carbide burrs Oval Shape E for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Advantages:
Reduced wear on the tool drive due to
impact-free work without chatter marks,
thanks to the high concentricity.
Materials that can be worked:
Steel, cast steel
Stainless steel (INOX)
Non-ferrous metals
Cast iron

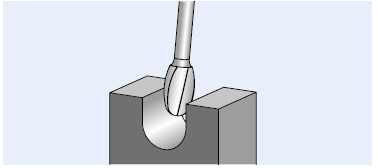

Applications:
Milling out
Levelling
Deburring
Cutting out holes
Surface work
Work on weld seams

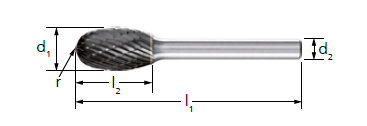

| Order NO | Cut diameter | Cut length | Shank diameter | Total length |
| E0307M03 | 3 | 7 | 3 | 38//50 |
| E0407M03 | 4 | 7 | 3 | 40 |
| E0508M03 | 5 | 8 | 3 | 40 |
| E0610M03 | 6 | 10 | 3 | 48 |
| E0610M06 | 6 | 10 | 6 | 50 |
| E0813M06 | 8 | 13 | 6 | 53 |
| E1016M06 | 10 | 16 | 6 | 56 |
| E1220M06 | 12 | 20 | 6 | 60 |
| E1422M06 | 14 | 22 | 6 | 62 |
| E1625M06 | 16 | 25 | 6 | 65 |
| E1925M06 | 20 | 25 | 6 | 65 |
