Universal cut medium, cross cut.
Machining of steel, cast iron, stainless steel (INOX), nickel-based alloys and
titanium alloys.
Its stock removal rate is up to 30% higher for steel.
It also offers significant time saving s and a high economic value .
Cylinder Shape with End cut B burrs for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Advantages:
Reduced wear on the tool drive due to
impact-free work without chatter marks,
thanks to the high concentricity.
Materials that can be worked:
Steel, cast steel
Stainless steel (INOX)
Non-ferrous metals
Cast iron

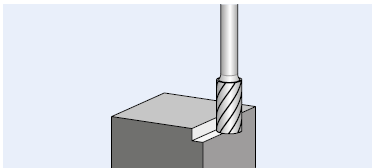

Applications:

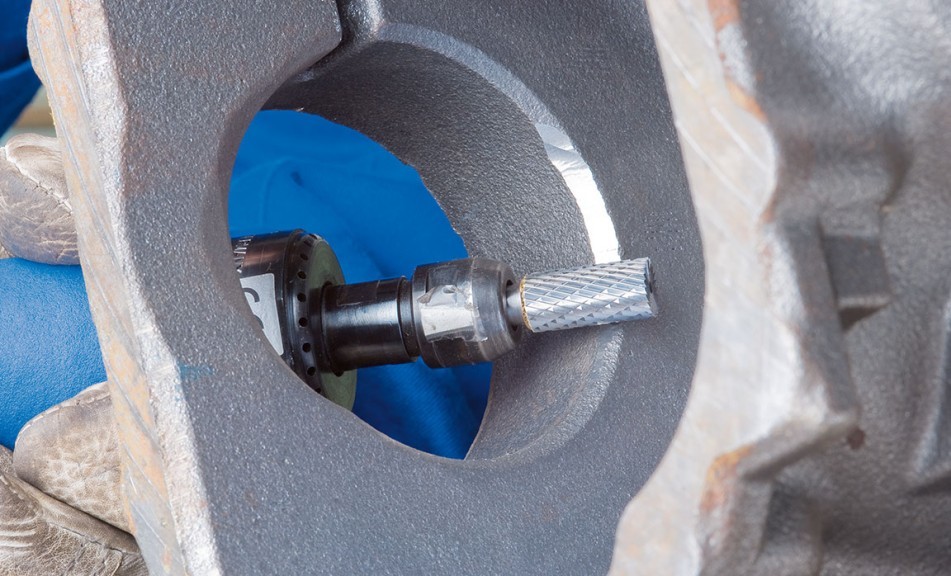

Milling out
Levelling
Deburring
Cutting out holes
Surface work
Work on weld seams

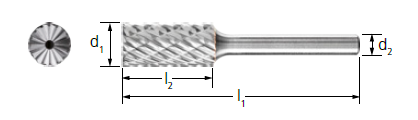

| Order NO | Cut diameter | Cut length | Shank diameter | Total length |
| B0313M03 | 3 | 13 | 3 | 38//50 |
| B0413M04 | 4 | 13 | 4 | 50 |
| B0413M03 | 4 | 13 | 3 | 40 |
| B0513M03 | 5 | 13 | 3 | 40 |
| B0613M03 | 6 | 13 | 3 | 48 |
| B0613M06 | 6 | 16 | 6 | 56 |
| B0820M06 | 8 | 20 | 6 | 60 |
| B1020M06 | 10 | 20 | 6 | 60 |
| B1225M06 | 12 | 25 | 6 | 65 |
| B1425M06 | 14 | 25 | 6 | 65 |
| B1625M06 | 16 | 25 | 6 | 65 |
| B1825M06 | 18 | 25 | 6 | 65 |
| B1925M06 | 19 | 25 | 6 | 65 |
| B2525M06 | 25 | 25 | 6 | 65 |
