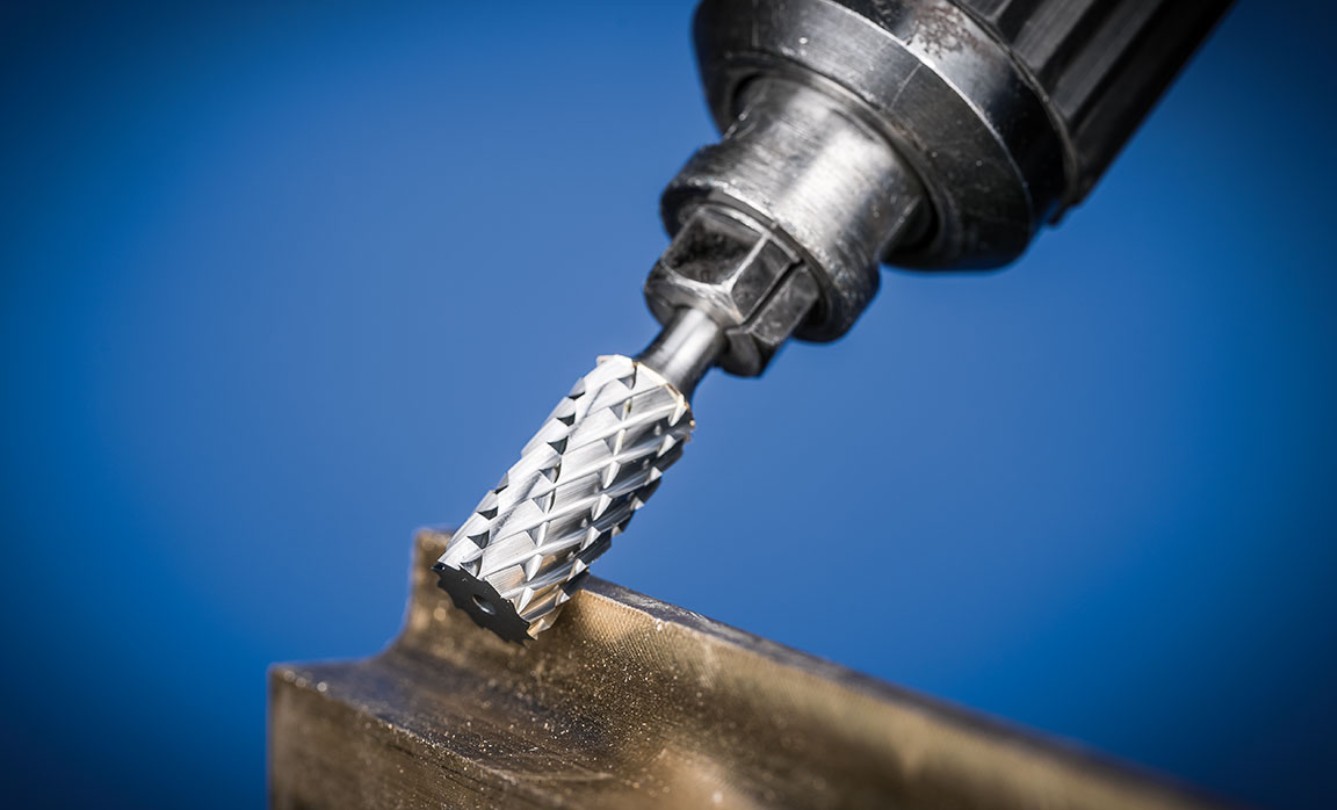

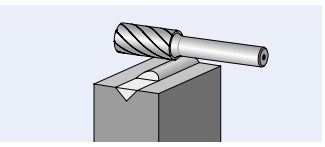

Cylinder Shape A burrs for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Cylinder Shape A burrs for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Advantages :
Good stock removal rate through optimum matching of tungsten carbide, geometry,cut .
Long too life.
Reduced wear on the tool drive due to impact-free work without chatter marks
High surface quality.
Materials that can be worked :
Steel , cast steel
Applications:
Milling out
Levelling
Deburring
Cutting on holes
Surface work
Work on weld seams
| Order NO | Cut diameter | Cut length | Shank diameter | Total length |
| A0313M03 | 3 | 13 | 3 | 38//50 |
| A0413M04 | 4 | 13 | 4 | 50 |
| A0413M03 | 4 | 13 | 3 | 40 |
| A0513M03 | 5 | 13 | 3 | 40 |
| A0613M03 | 6 | 13 | 3 | 48 |
| A0616M06 | 6 | 16 | 6 | 56 |
| A0820M06 | 8 | 20 | 6 | 60 |
| A1020M06 | 10 | 20 | 6 | 60 |
| A1225M06 | 12 | 25 | 6 | 65 |
| A1425M06 | 14 | 25 | 6 | 65 |
| A1625M06 | 16 | 25 | 6 | 65 |
| A1825M06 | 18 | 25 | 6 | 65 |
| A2025M06 | 20 | 25 | 6 | 65 |
| A2525M06 | 25 | 25 | 6 | 65 |
| A0804M06 | 8 | 4 | 6 | 44 |
| A1005M06 | 10 | 5 | 6 | 45 |
| A1205M06 | 12 | 5 | 6 | 45 |
| A1606M06 | 16 | 6 | 6 | 46 |
