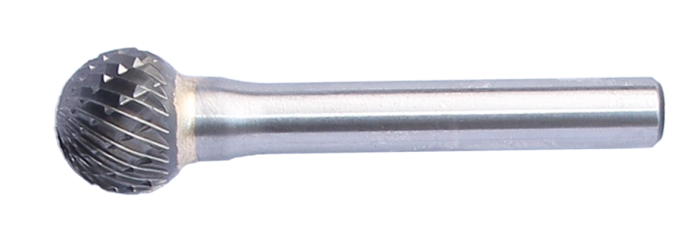

Tungsten carbide burrs Ball Shape D burrs for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Tungsten carbide burrs,Ball Shape D burrs for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .
Advantages:
Reduced wear on the tool drive due to
impact-free work without chatter marks,
thanks to the high concentricity.
Materials that can be worked:
Steel, cast steel
Stainless steel (INOX)
Non-ferrous metals
Cast iron

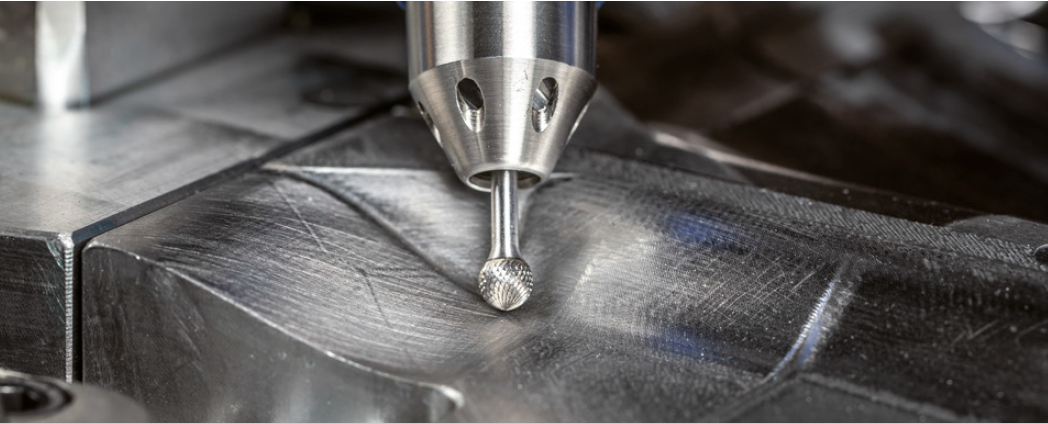

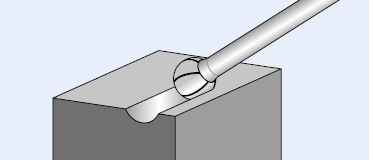

Applications:
Milling out
Levelling
Deburring
Cutting out holes
Surface work
Work on weld seams

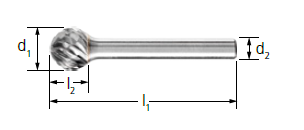

| Order NO | Cut diameter | Cut length | Shank diameter | Total length |
| D0303M03 | 3 | 3 | 3 | 38//50 |
| D0403M04 | 4 | 3 | 4 | 50 |
| D0403M03 | 4 | 3 | 3 | 40 |
| D0504M03 | 5 | 4 | 3 | 40 |
| D0605M03 | 6 | 5 | 3 | 48 |
| D0605M06 | 6 | 5 | 6 | 45 |
| D0807M06 | 8 | 7 | 6 | 47 |
| D1009M06 | 10 | 9 | 6 | 49 |
| D1210M06 | 12 | 10 | 6 | 51 |
| D1412M06 | 14 | 12 | 6 | 52 |
| D1614M06 | 16 | 14 | 6 | 54 |
| D1816M06 | 18 | 16 | 6 | 56 |
| D2018M06 | 20 | 18 | 6 | 56 |
| D2523M06 | 25 | 23 | 6 | 56 |
