Tree shape with Pointed End G

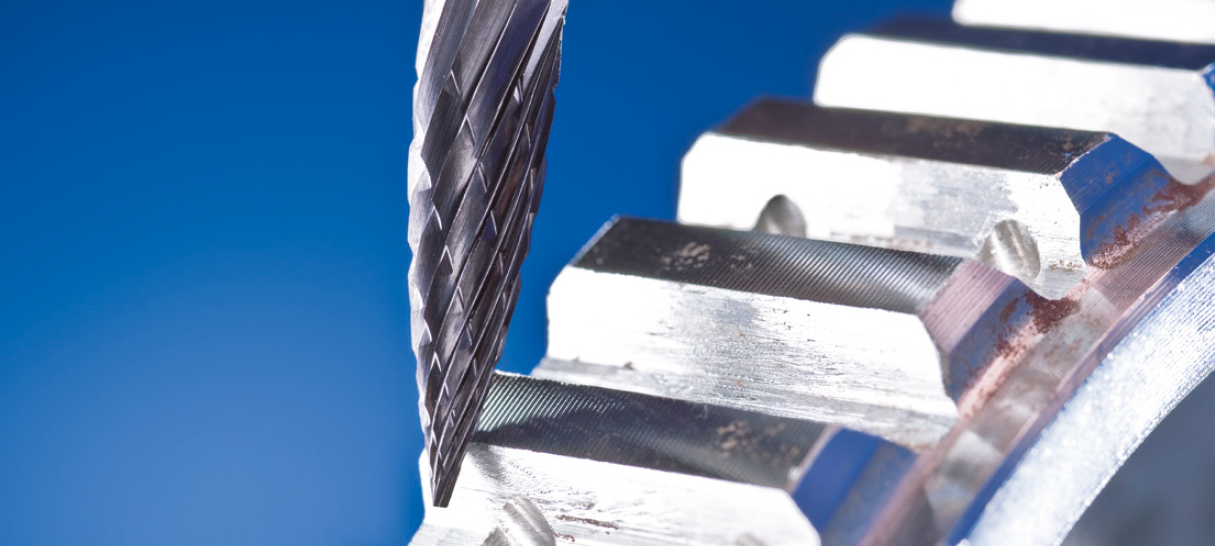

Tungsten carbide burrs Tree Shape with Pointed End G for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .

EMAIL

Tungsten carbide burrs Tree Shape with Pointed End G for coarse stock removal on the key materials used in industrial manufacturing .

They provide a good stock removal reate and not specific to a particular material .


Advantages:

Reduced wear on the tool drive due to

impact-free work without chatter marks,

thanks to the high concentricity.

Materials that can be worked:

Steel, cast steel

Stainless steel (INOX)

Non-ferrous metals

Cast iron

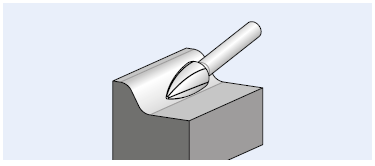

Applications:

Milling out

Levelling

Deburring

Cutting out holes

Surface work

Work on weld seams

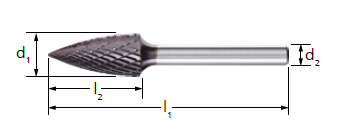

Order NOCut diameterCut lengthShank diameterTotal length
G0313M03      3 13 38//50
G0413M03      4 13 40
G0513M03      5 13 40
G0613M03      6 13 48
G0618M06      6 18 50
G0817M06      8 17 58
G1020M06     10 20 57
G1225M06     12 25 60
G1425M06     14 25 65
G1625M06     16 25 65
G1925M06     19 25 65
G1938M06     19 38 65
