Cone Shape M

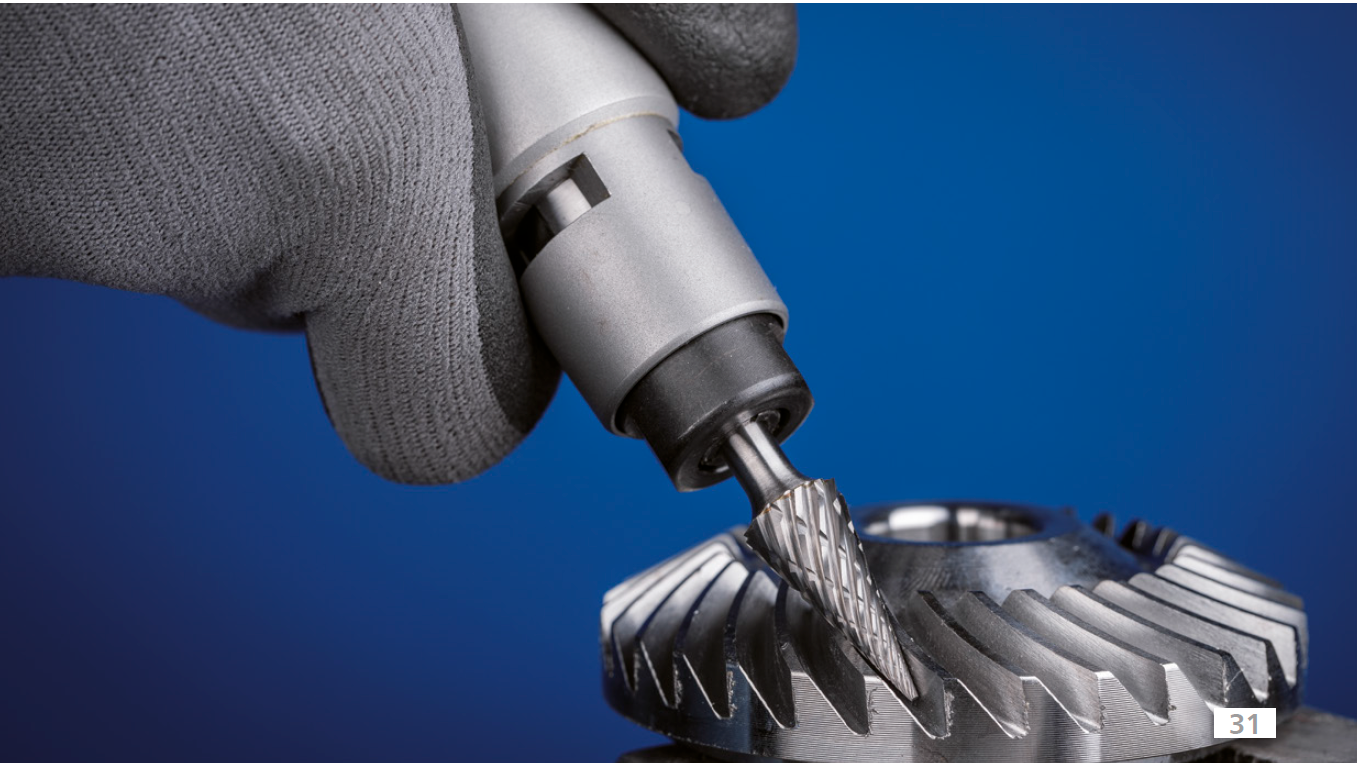

Tungsten Carbide Burrs, Cone Shape M for coarse stock removal on the key materials used in industrial manufacturing .
They provide a good stock removal reate and not specific to a particular material .

EMAIL

Tungsten Carbide Burrs, Cone Shape M for coarse stock removal on the key materials used in industrial manufacturing .

They provide a good stock removal reate and not specific to a particular material .


Advantages:

Reduced wear on the tool drive due to

impact-free work without chatter marks,

thanks to the high concentricity.

Materials that can be worked:

Steel, cast steel

Stainless steel (INOX)

Non-ferrous metals

Cast iron

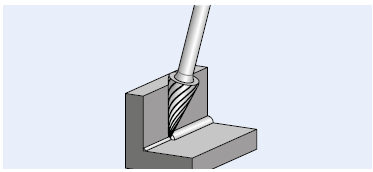

Applications:

Milling out

Levelling

Deburring

Cutting out holes

Surface work

Work on weld seams

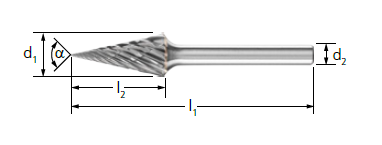

Order NOCut diameterCut lengthShank diameterTotal length
M0313M03     3 13 38//50
M0413M04     4 13 50
M0413M03     4 13 40
M0513M03     5 13 40
M0613M03     6 13 48
M0618M06     6 18 58
M0817M06     8 17 57
M1020M06     10 20 60
M1225M06     12 25 65
M1425M06     14 25 65
M1625M06     16 25 65
